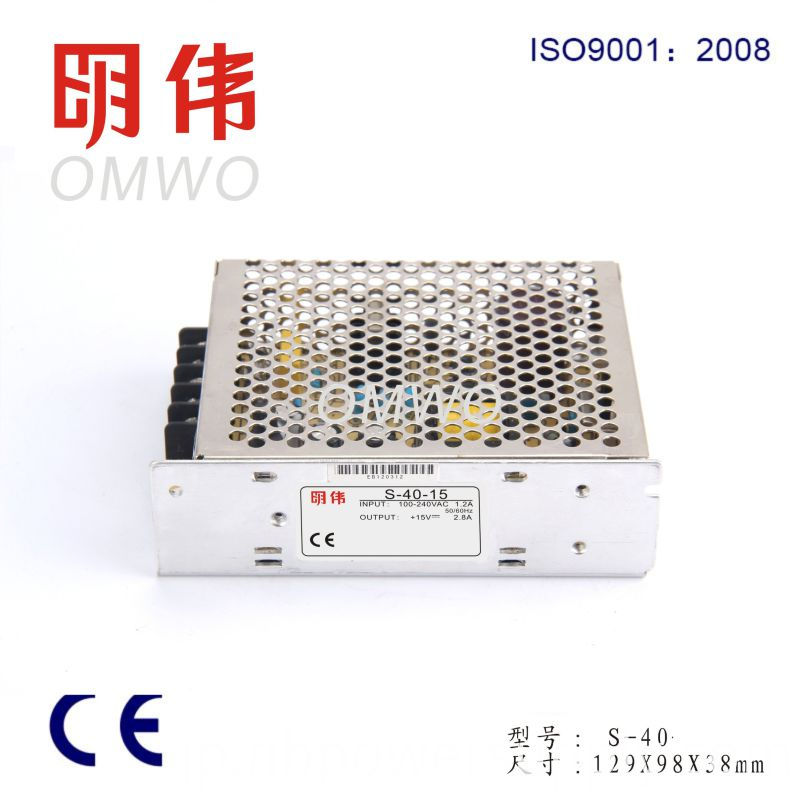

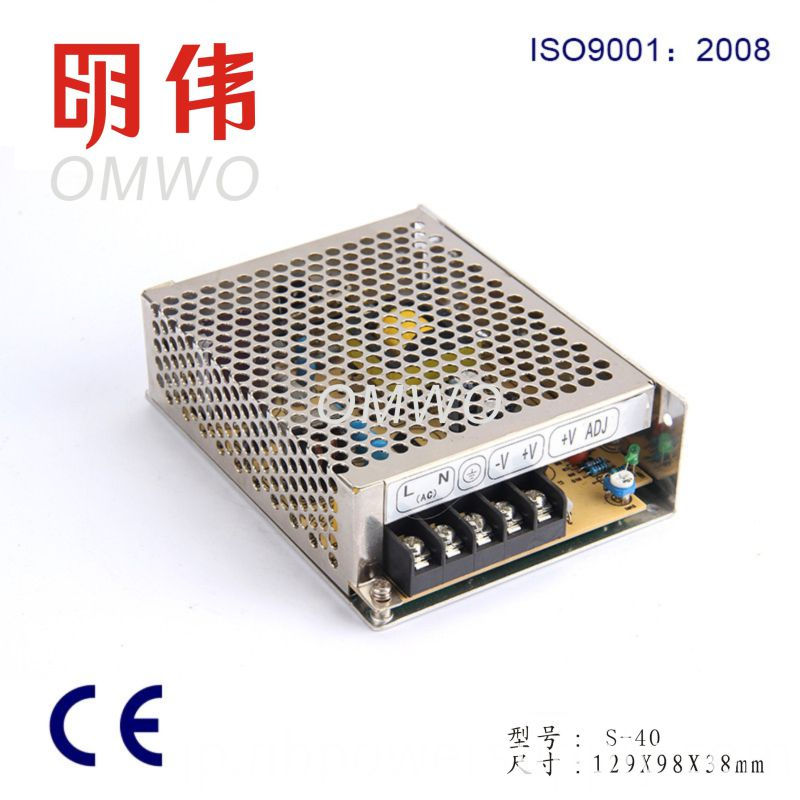

高品質AC DCシングル出力40W LEDドライバ電源
ホーム > 製品情報 > 単一出力スイッチング電源 > 高品質AC DCシングル出力40W LEDドライバ電源

高品質AC DCシングル出力40W LEDドライバ電源

    お支払い方法の種類: L/C, T/T, Western Union, Paypal, Money Gram
    最小注文数: 1
    納期: 1 天数
    生産高: 50000/Month
    原産地:  浙江省
    供給能力: 50000/Month
    認証 :  CE, UL, RoHS, ISO, CCC, CB, CSA

基本情報

モデル:  S-40-12

製品の説明

モデル番号:S-40-12保証:> 2年入力電圧:15V起動モード:自励式スイッチング電源電源供給システム:ターミナル配電装置変調システム:PFAWブランド:Omwo仕様:159 * 98 * 38mm HSコード:8504401990出力タイプ:単一出力電力:1 - 50W接続モード:シリーズスイッチング電源電圧調整モード:周波数変調タイプエネルギー伝送:双方向伝送認証:CE、UL、RoHS、ISO、CCC、CB、CSA商標:OMWO原産地:浙江省仕様
S-40-12
AC DC S-40-12
高品質/ S-40-12
UL CE EMC S-40-12
2年保証S-40-12 S-40-12まあまあ/
*ユニバーサルAC入力/フルレンジ*保護:短絡/過負荷/過電圧*フリーエア対流による冷却* 100%全負荷バーンインテスト* 75KHzでの固定周波数の固定* 2年間の保証

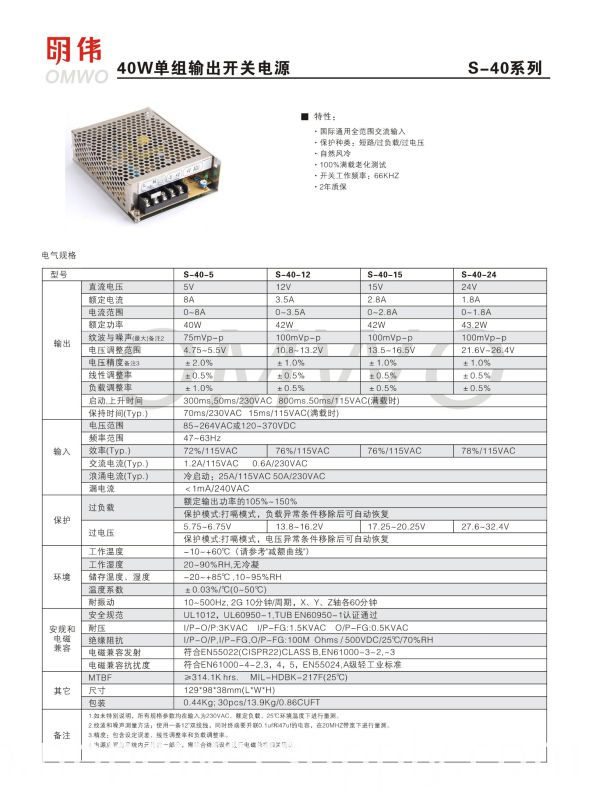

MODEL

S-40-5

S-40-12

S-40-15

S-40-24

OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

8A

3.5A

2.8A

1.8A

CURRENT RANGE

0 ~ 8A

0 ~ 3.5A

0 ~ 2.8A

0 ~ 1.8A

RATED POWER

40W

42W

42W

43W

RIPPLE & NOISE (max.)  Note.2

75mVp-p

100mVp-p

100mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

21.6 ~ 26.4V

VOLTAGE TOLERANCE   Note.3

2.0%

1.0%

1.0%

1.0%

LINE REGULATION

0.5%

0.5%

0.5%

0.5%

LOAD REGULATION

1.0%

0.5%

0.5%

0.5%

SETUP, RISE TIME

300ms, 50ms/230VAC    800ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

70ms/230VAC    15ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC   120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

72%/115VAC

76%/115VAC

76%/115VAC

78%/115VAC

AC CURRENT (Typ.)

1.2A/115VAC    0.6A/230VAC

INRUSH CURRENT (Typ.)

COLD START 25A/115VAC     50A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8 ~ 16.2V

17.25 ~ 20.25

27.6 ~ 32.4V

Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.

-10 ~ +60 (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85 , 10 ~ 95% RH

TEMP. COEFFICIENT

0.03%/  (0 ~ 50 )

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for  60min. each along X, Y, Z axes

SAFETY &EMC(Note 4)

SAFETY STANDARDS

UL1012, UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS

IMMUNITY

Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, light industry level,  criteria A

OTHERS

MTBF

314.1K hrs min. MIL-HDBK-217F (25 )

DIMENSION

129*98*38mm (L*W*H)

PACKING

0.44Kg; 30pcs/13.9Kg/0.86CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25     of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets

EMC directives.
