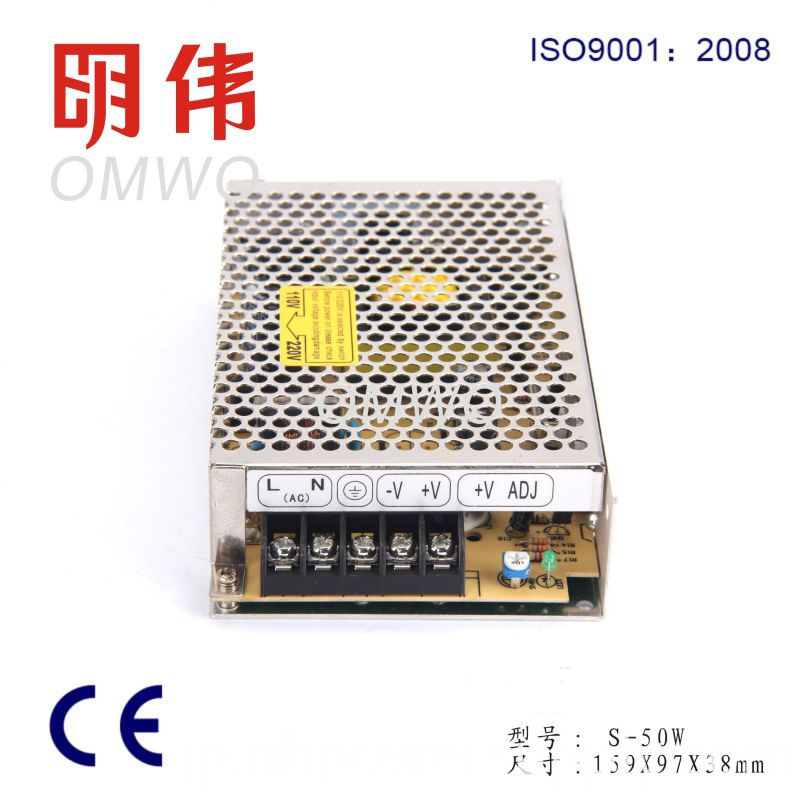

ホーム > 製品情報 > 単一出力スイッチング電源 > 110V / 220Vスイッチング電源CCTV電源(Ce RoHS認可済み)

基本情報

モデル:  S-50-48

製品の説明

モデル番号:S - 50 - 48保証:> 2年入力電圧:24V起動モード:自励式スイッチング電源供給システム:ターミナル配電機器変調システム:PFAWブランド:Omwo商標:OMWO原産地:浙江省出力タイプ:単一出力電力:1 - 50W接続モード:シリーズスイッチング電源電圧調整モード:周波数変調タイプエネルギー伝送:双方向伝送CE、UL、RoHS、ISO、CCC、CB、CSAサイズ:159 * 98 * 38mm仕様:159 * 98 * 38mm HSコード:8504401990 50W S-50-48 \ n \ n \ n *ユニバーサルAC入力/フルレンジ\ n *保護:短絡/過負荷/過電圧/過熱温度\ n *冷却自由空気対流による\ n * 100%全負荷バーンインテスト\ n * 2年間の保証\ n
MODEL NES-50-5 NES-50-12 NES-50-15 NES-50-24 NES-50-48





OUTPUT
DC VOLTAGE 5V 12V 15V 24V 48V
CURRENT RANGE 0 ~ 10A  0 ~ 4.2A  0 ~ 3.4A  0 ~ 2.2A 0 ~ 1.1A
RATED CURRENT 10A 4.2A 3.4A 2.2A 1.1A
RATED POWER 50W 50.4W 51W 52.8W 52.8W
RIPPLE & NOISE (max.)  Note.2 80mVp-p   120mVp-p 150mVp-p 200mVp-p 240mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V  10.8 ~ 13.2V  13.5 ~ 16.5V 21.6 ~ 26.4V  43.2 ~ 52.8V
VOLTAGE TOLERANCE
NOTE.3
2.0% 1.0% 1.0% 1.0%   1.0%
LINE REGULATION 0.5% 0.5% 0.5% 0.5% 0.5%
LOAD REGULATION 0.5% 0.5% 0.5% 0.5% 0.5%
SETUP, RISE TIME NOTE.5 500ms, 30ms/230VAC   1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC    10ms/115VAC at full load


 INPUT
VOLTAGE RANGE 85 ~ 264VAC   120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 79% 82% 83% 86% 87%
AC CURRENT (Typ.) 1.1A/115VAC   0.65A/230VAC
INRUSH CURRENT (Typ.) COLD START 45A
LEAKAGE CURRENT <2mA / 240VAC

PROTECTION
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V  13.8 ~ 16.2V  17.25 ~ 20.25V 27.6 ~ 32.4V   55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover


ENVIRONMENT
WORKING TEMP. -20 ~ +60oC (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03%/oC (0 ~ 45oC )
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for  60min. each along X, Y, Z axes


SAFETY &EMC(Note 4)
SAFETY STANDARDS UL60950-1, CB(IEC60950-1) approved
WITHSTAND VOLTAGE  I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT Compliance to EN61000-3-2,-3
EMS
IMMUNITY
Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A
 OTHERS MTBF 374.2K hrs min. MIL-HDBK-217F (25 )
DIMENSION 129*98*38mm (L*W*H)
PACKING  0.41Kg; 45pcs/19.5Kg/1.24CUFT

NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.
\ n 110V/220V Switching Power Supply CCTV Power Supply with Ce RoHS Approved110V/220V Switching Power Supply CCTV Power Supply with Ce RoHS Approved110V/220V Switching Power Supply CCTV Power Supply with Ce RoHS Approved110V/220V Switching Power Supply CCTV Power Supply with Ce RoHS Approved110V/220V Switching Power Supply CCTV Power Supply with Ce RoHS Approved110V/220V Switching Power Supply CCTV Power Supply with Ce RoHS Approved
